Batch material creator - application setting

Batch material creator - application setting

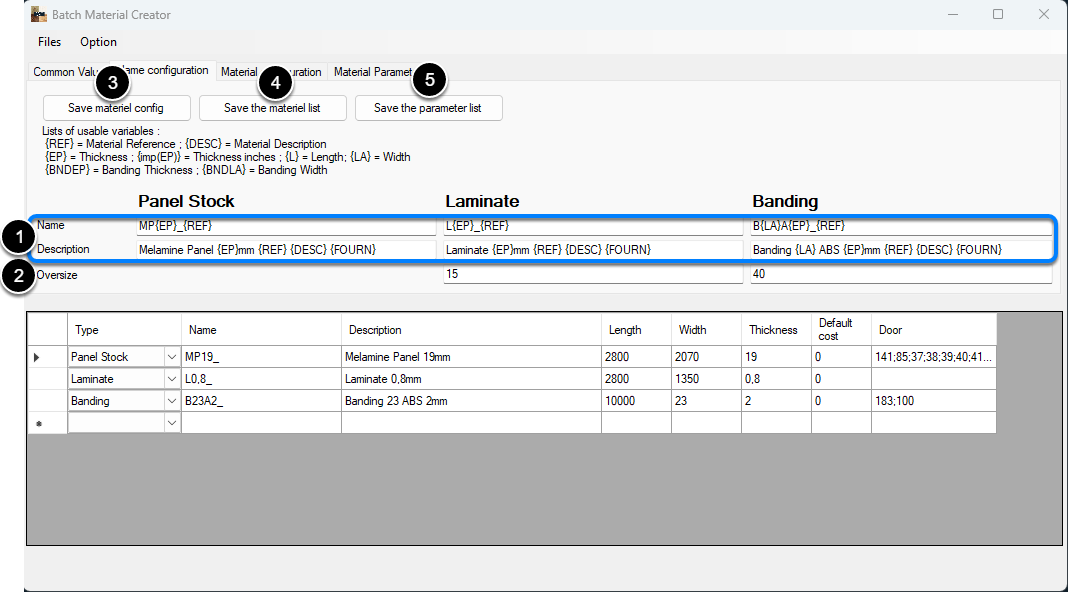

1. Name Configuration

In this application you can modify the structure of material names and descriptions. For every group (panel, laminate, banding) you can configure the text. The variables that are between brackets will be replaced with the information you type in the tab "Common values". You can save information permanently with the button "set to default".

  1. Setting up the Names and Description
  2. Setting up the oversize length for laminate and banding
  3. Save the material configuration
  4. Save the Material list
  5. Save the parameter list

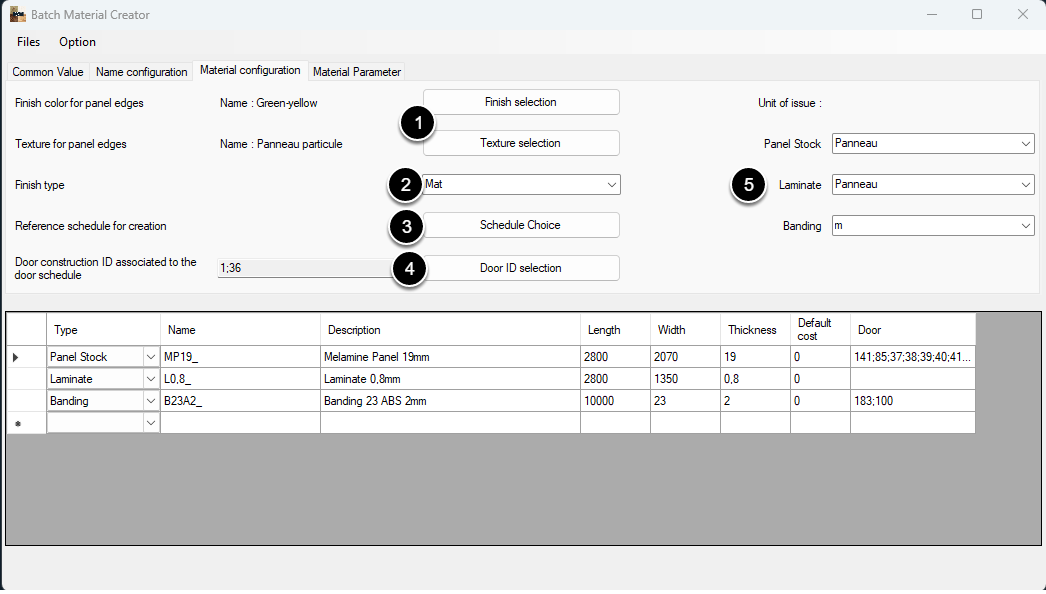

2. Material Configuration

In this Tab you can choose the default selections of the finish colors for the panel edges, the texture for the panel edges, the finish type, the "glass" material in the door schedules, the doors you want to associate the door schedule to and the default unit of issue defined by material type.


You can set in this tab some default values for:

  1. Panel edge texture and finish
  2. Finish type by default for all material created
  3. Reference Material Schedule
  4. Doors that you want to assign the material schedule created
  5. Unit per material type

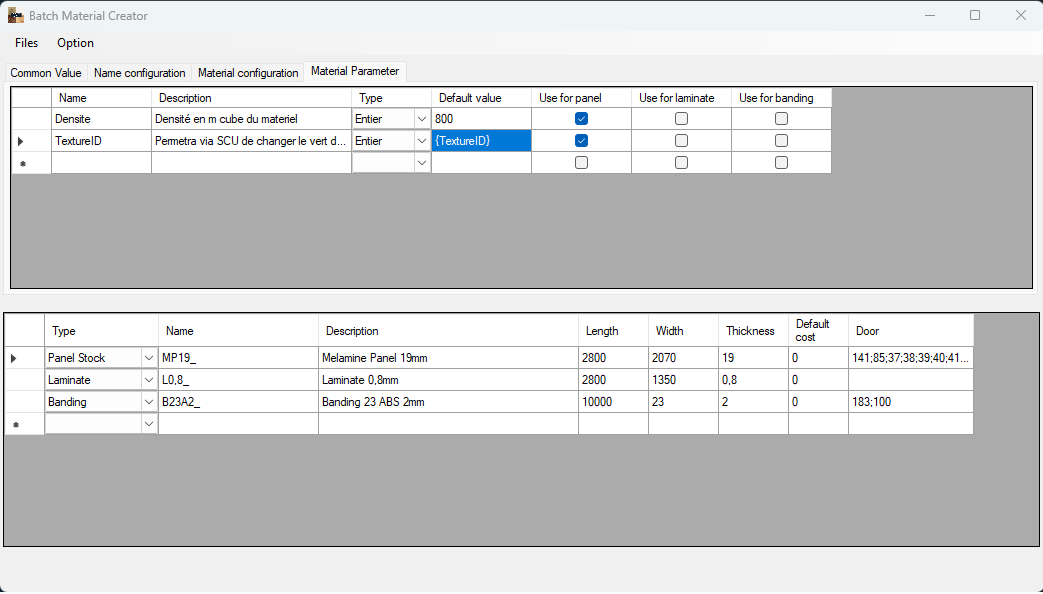

3. Material Parameters

This tab lets you add parameters to the material when they are created.

These parameters can be associated with one or several types of materials. A default value is defined. The {TextureID} value is used to pass the face texture ID to the material.
